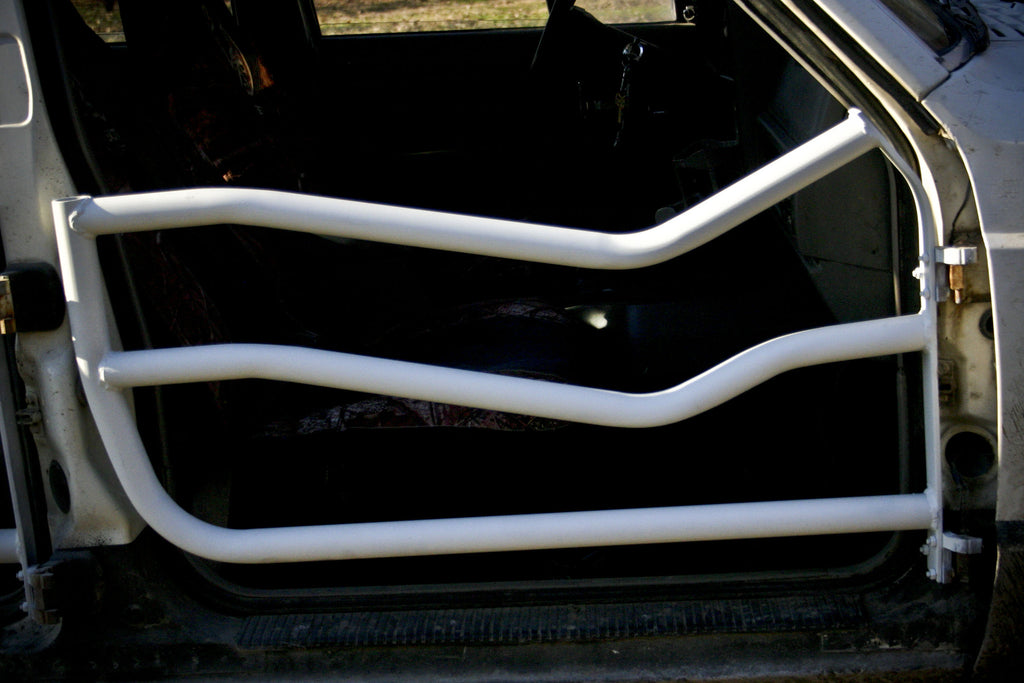

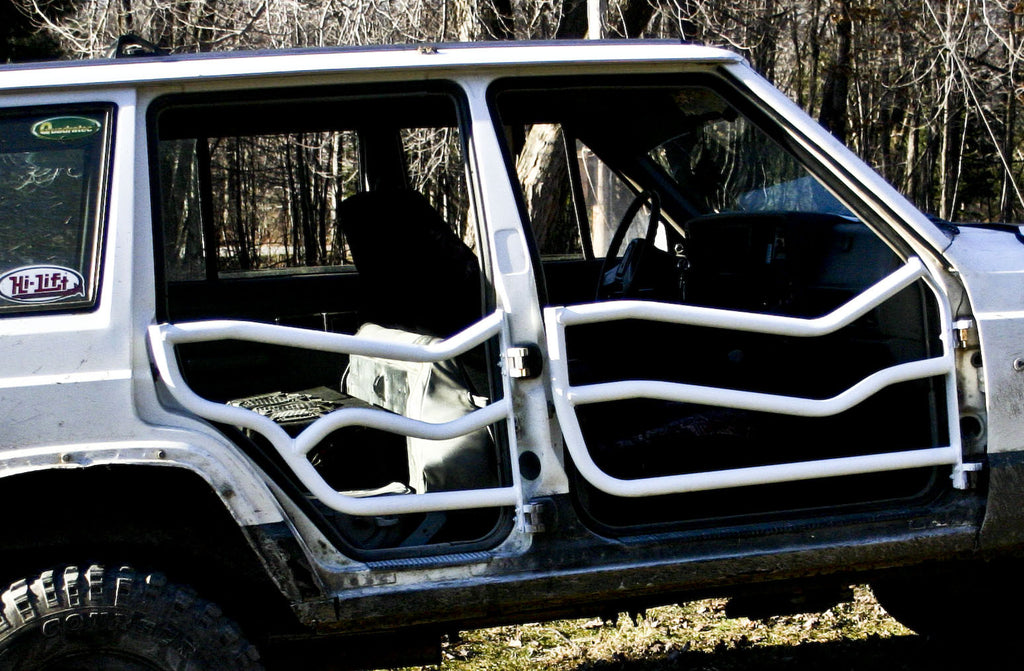

XJ Front & Rear Tube Doors

This four door, front and rear, XJ weld together DIY TUBE kit includes the 1/2″ x 1 1/2″ flat stock to use by the door jamb, and the bent, notched 1 1/2″ .083" wall ERW tubing.

You will receive a 10% savings by purchasing this full 4-door kit as opposed to buying the front and rear doors separately from us.

Latches are sold separately. Gussets are coming soon.

AS ALWAYS FREE SHIPPING!!!
**To assemble the doors. THIS IS IMPORTANT!
1. Clamp the flat stock to the factory hinges, mark the holes, remove the flat stock and drill the holes. Then bolt the flat stock onto your hinges.
2. Take the main door hoop, that is the largest tube in this kit, and hold it up to the door opening, then trim the tube on the hinge end so that the opposite side of the tube lines up with the striker pin. Once trimmed, tack weld the main hoop to the flat stock. Be sure to measure the distance between that lower tube and your rocker so your door is parallel with the lower door opening.
3. Once that is done, take the top tube and trim the front of the tube where it goes to the flat stock. Once you have it fitting nicely tack weld that to the main tube and the flat stock.
4. Repeat the last process on the middle tube.
5. Once everything is tacked into place weld it up.

**WARNING Cherokees have unibodies. This means that you should strengthen it before removing your doors to prevent your Jeep from folding in half while wheeling them.
Weights are between 20 and 40#.
